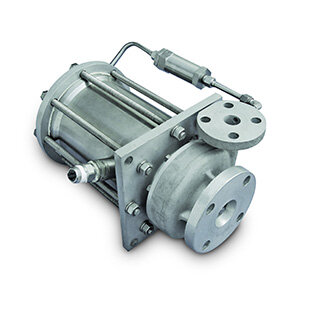

AC 32 Sealless Pumps

☆Features & Benefits

● Pump and motor are fully flooded with liquid, minimizing start-up and downtime and guaranteeing quick, responsive pumping

● Sealless design minimizes maintenance requirements – no mechanical seal

● No sump required – lowers cost

● Sealless zero leakage design is environmentally safe, releasing no volatile organic chemicals and contaminates (VOC’s) into the atmosphere

● Multi-frequency motor provides an efficient and broad range of operation and power

● Electrical motor and bearing life is extended being cooled by the cryogen it is pumping, heat input is minimal and carried off by discharging liquid

● Low NPSH inducer coupled with a variable speed soft start motor eliminates cavitation at pump start-up

● Suitable for Class I, Div I (IEC Zone 0 and 1)

● Pass-thru connection

☆A(yù)pplications

LNG filling station pump、Fuel loading pump、LNG peaking plant

☆Liquids Pumped

Nitrogen、Oxygen、CO2、Methane (LNG)、Ethylene (C2H2)

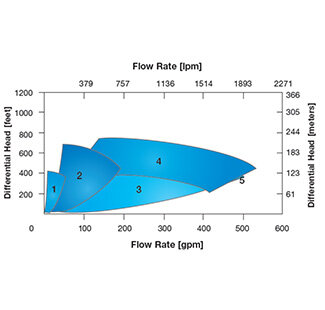

☆Type

1 x 2 x 4.5   1,500 to 7,200 rpm

1.5 x 3 x 6   1,500 to 7,200 rpm

2 x 4 x 6      1,500 to 5,600 rpm

2 x 4 x 8.5   1,500 to 5,000 rpm

3 x 5 x 8.5   1,500 to 5,000 rpm
