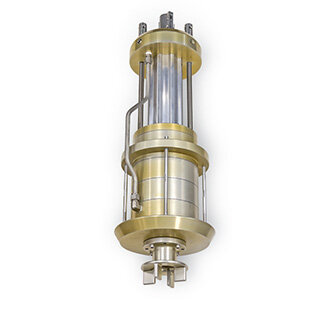

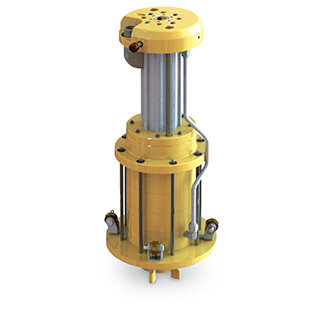

TC 34.2 Submerged Pumps

☆Features & Benefits

The TC-34.2 pump has been specifically designed for operation in LNG with the most efficient set of hydraulic designs and lowest NPSHR in the industry. Key features of the design are the permanent magnet motors that are highly efficient and compact thus reducing the size and weight of the pump and wide operational capability through the use of a VFD. The modular multi-stage design allows to reach very high differential heads and the ratings vary from 2.5 kw to 250 kw.

● Active thrust balancing system for extended bearing life

● High efficiency hydraulics with extremely low NPSHR inducer

● Light weight and compact

● Available in sump and in-tank designs

● Special design VFD drive provides operation point control over the entire pump operating range

● Features a quick electrical disconnect for ease of maintenance

● Permanent magnet motor

● All parts from wrought aluminum precision machined

● Vacuum jacketed sump

● Heavy duty ceramic bearings

☆A(yù)pplications

Fuel supply systems for rail locomotives、Low pressure marine fuel systems、HP Booster pump、Liquid storage transfer、Bunkering operations、Peak-shaving、Trailer off-loading

☆Liquids Pumped

Liquid Nitrogen、Liquid Argon、Ethylene、Ethane、Methane (LNG)、Propane

☆Type

TC-34.2
